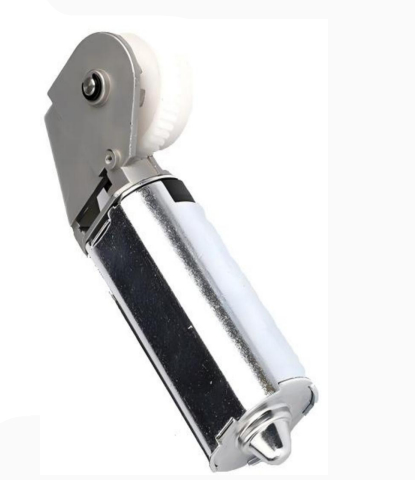

MT005 Electric Lifting Desk Motor High Load Capacity Fast Lifting Speed
Productdetails:
| Plaats van herkomst: | Dongguan China |
| Merknaam: | UCHI |
| Certificering: | Completed |
| Modelnummer: | MT005 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1000 pccs |
|---|---|
| Prijs: | Onderhandelbaar |
| Verpakking Details: | Standaard |
| Levertijd: | 5-7 dagen |
| Betalingscondities: | T/T, Western Union |
| Levering vermogen: | 5000 stuks stuks |
|
Gedetailleerde informatie |
|||
| Nominale kracht: | Maximaal 80 W | Nominale spanning: | DC24V |
|---|---|---|---|
| Certificaat: | 3c | Roteer de snelheid: | 120 t/min |
| Zaal: | Eenvoudig/tweevoudig | Vermindering van de verhouding: | 44 |
| Magnetische poolnummer: | Twee paar | Grootte van de rotor: | 3025/3041 |
| Torsie: | 5n.m Max | ||
| Markeren: | Fast Lifting Speed Lifting Desk Motor,MT005 Lifting Desk Motor,High load capacity Lifting Desk Motor |
||
Productomschrijving
MT005 Electric Lifting Desk Motor High load capacity Fast Lifting Speed
Applications:
Electric Lifting Desk Motors are widely used in various settings where adjustable-height desks are needed. These include:
-
Office Environments: In modern offices, they power adjustable desks that allow employees to switch between sitting and standing positions to improve ergonomics and reduce the risk of sedentary-related health issues.
-
Home Offices: For individuals working from home, these motors enable the creation of versatile workspaces that can be adapted to different tasks and preferences.
-
Educational Institutions: In classrooms and study areas, adjustable desks with electric motors can accommodate students of different heights and promote better posture.
-
Medical Facilities: In examination rooms and therapy areas, adjustable-height desks can be used to ensure that medical professionals can work comfortably and efficiently.
-
Industrial Settings: In manufacturing and assembly areas, adjustable workstations powered by these motors can be tailored to the specific needs of different tasks and workers.
| Voltage | DC24 | DC24 |
| Power | 80 V | 60V |
| Rotate Speed | 120 RPM | 120RPM |
| Torsion | 5N.M | 3N.M |
| Reduction on Ratio | 44 | 44 |
| Hall | Single/Dual | Single/Dual |
| Magnetic Pole Number | Two pairs | Two pairs |
| Rotor Size | 3041 | 3025 |
Product features:
1.Zinc Alloy Die-Casting Enclosure.
2.Customized wire length and sequence.
3.Easy to install, no screws needed for installation.
4.Optional brake at motor tail end.
5.Suitable for supporting heavy-duty electric height-adjustable tables.
