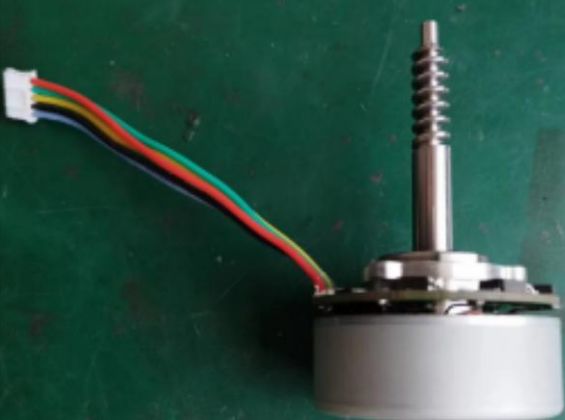

BLDC 4820 Brushless Motors For Medical Apparatus And Business Equipment
Productdetails:
| Plaats van herkomst: | Dongguan China |
| Merknaam: | UCHI |
| Certificering: | Completed |
| Modelnummer: | BLDC 4820 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1000 pccs |
|---|---|
| Prijs: | Onderhandelbaar |
| Verpakking Details: | Standaard |
| Levertijd: | 5-7 dagen |
| Betalingscondities: | T/T, Western Union |
| Levering vermogen: | 5000 stuks stuks |
|
Gedetailleerde informatie |
|||
| Geen ladingsvoltage: | 24.04V | Snelheid bij Eff Max: | 3387rpm |
|---|---|---|---|
| Certificaat: | 3c | Pruil Max: | 60.19W |
| Maximum torsie: | 305.3mn.m | ||
| Markeren: | 4820 BLDC Brushless Motors,Medical Apparatus BLDC Brushless Motors,Business Equipment BLDC Brushless Motors |
||
Productomschrijving
Typical Applications:
1. Home Application
2. Business Equipment
3. Medical Apparatus
4. Industry Apparatus

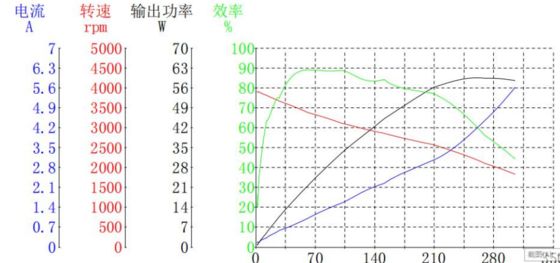

Brushless Motor Technical Data
| Point | VOLTAGE | CURRENT | INPUT POWER | SPEED | TORQUE |
OUTPUT POWER |
EFFICIENCY | TIME |
| V | A | W | RPM | mN.m | W | % | S | |
| NO LOAD | 24.04 | 0.167 | 4.023 | 3904 | 2.6 | 1.055 | 26.2 | 0.000 |
| EFF MAX | 23.99 | 1.007 | 24.16 | 3387 | 60.6 | 21.49 | 89.0 | 22.66 |
| POUT MAX | 23.81 | 3.838 | 91.37 | 2312 | 248.7 | 60.19 | 65.9 | 35.89 |
| TORQUE MAX | 23.56 | 5.613 | 132.2 | 1830 | 305.3 | 58.50 | 44.2 | 39.50 |
| END | 23.56 | 5.613 | 132.2 | 1830 | 305.3 | 58.50 | 44.2 | 39.50 |
Features:
1. High Efficiency: BLDC 4820 motors can achieve high efficiency levels, often up to 78.41% at their maximum efficiency point. This is due to the absence of mechanical brushes, which reduces energy losses.
2. Low Noise: These motors operate smoothly with minimal noise, making them ideal for applications that require a quiet operating environment.
3. Long Lifespan: With no brushes to wear out, BLDC 4820 motors have a significantly longer lifespan compared to brushed motors. They can operate reliably for over 3000 hours.
4. High Torque: Despite their compact size, these motors can deliver strong torque, making them suitable for demanding tasks such as drilling and cutting.
