BLDC 75100 Brushless Motors For Home Application And Business Equipment
Productdetails:
| Plaats van herkomst: | Dongguan China |
| Merknaam: | UCHI |
| Certificering: | Completed |
| Modelnummer: | BLDC 75100 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1000 pccs |
|---|---|
| Prijs: | Onderhandelbaar |
| Verpakking Details: | Standaard |
| Levertijd: | 5-7 dagen |
| Betalingscondities: | T/T, Western Union |
| Levering vermogen: | 5000 stuks stuks |
|
Gedetailleerde informatie |
|||
| Geen ladingsvoltage: | 220.4V | Snelheid bij Eff Max: | 1489rpm |
|---|---|---|---|
| Certificaat: | 3c | Pruil Max: | 398.9W |
| Maximum torsie: | 2.607mn.m | ||
| Markeren: | Business Equipment BLDC Brushless Motors,75100 BLDC Brushless Motors |
||
Productomschrijving
BLDC 75100 Brushless Motors For Home Application And Business Equipment
Typical Applications:
1. Home Application
2. Business Equipment

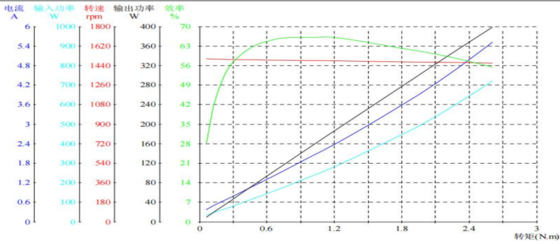

Brushless Motor Technical Data
| Point | VOLTAGE | CURRENT | INPUT POWER | SPEED | TORQUE | OUTPUT POWER | EFFICIENCY | POWER FACTOR | FREQUENCY | TIME |
| V | A | W | RPM | mN.m | W | % | Hz | S | ||
| NO LOAD | 220.4 | 0.377 | 34.89 | 1502 | 0.064 | 10.06 | 28.8 | 0.42 | 50.02 | 0 |
| EFF MAX | 200.2 | 1.589 | 178 | 1489 | 0.763 | 118.8 | 66.8 | 0.509 | 50.01 | 19.11 |
| POUT MAX | 219.8 | 5.511 | 720.4 | 1462 | 2.607 | 398.9 | 55.4 | 0.595 | 50.02 | 31.78 |
| TORQUE MAX | 219.8 | 5.511 | 720.4 | 1462 | 2.607 | 398.9 | 55.4 | 0.595 | 50.02 | 31.78 |
| END | 219.8 | 5.511 | 720.4 | 1462 | 2.607 | 398.9 | 55.4 | 0.595 | 50.02 | 31.78 |
Features:
- High Efficiency: BLDC motors are highly efficient because they eliminate the mechanical energy loss due to friction in brushed motors. This efficiency is particularly advantageous in battery-powered applications where energy conservation is crucial.
- Long Lifespan: The absence of brushes means there is no brush and commutator erosion, which significantly extends the motor's lifespan. The lifespan is usually limited only by the bearings.
- High Power-to-Weight Ratio: BLDC motors can deliver high power relative to their size and weight. This makes them ideal for applications where weight and space are critical, such as in model aircraft and drones.
