2WDD35D-4 10k Linear Dual Potentiometer Resistance Rotary Potentiometer
Productdetails:
| Plaats van herkomst: | Dongguan, Guangdong, China |
| Merknaam: | Uchi |
| Certificering: | SMC |
| Modelnummer: | 2WDD35D |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 100 -stcs |
|---|---|
| Prijs: | Onderhandelbaar |
| Betalingscondities: | T/T, PayPal, Western Union, MoneyGram |
| Levering vermogen: | 50000000 pcs per maand |
|
Gedetailleerde informatie |
|||
| Weerstand: | 1KΩ~10KΩ | Weerstandstolerantie: | ± 15% |
|---|---|---|---|
| Bedrijfstemperatuur: | -55℃~ +125℃ | Nominaal vermogen: | 2W (@70℃) |
| Markeren: | 10k linear potentiometer with dual resistance,rotary potentiometer for precision control,dual potentiometer with 10k resistance |
||
Productomschrijving

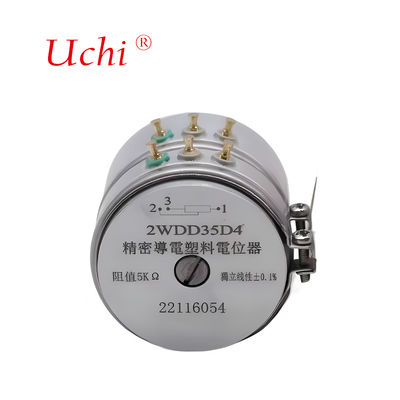

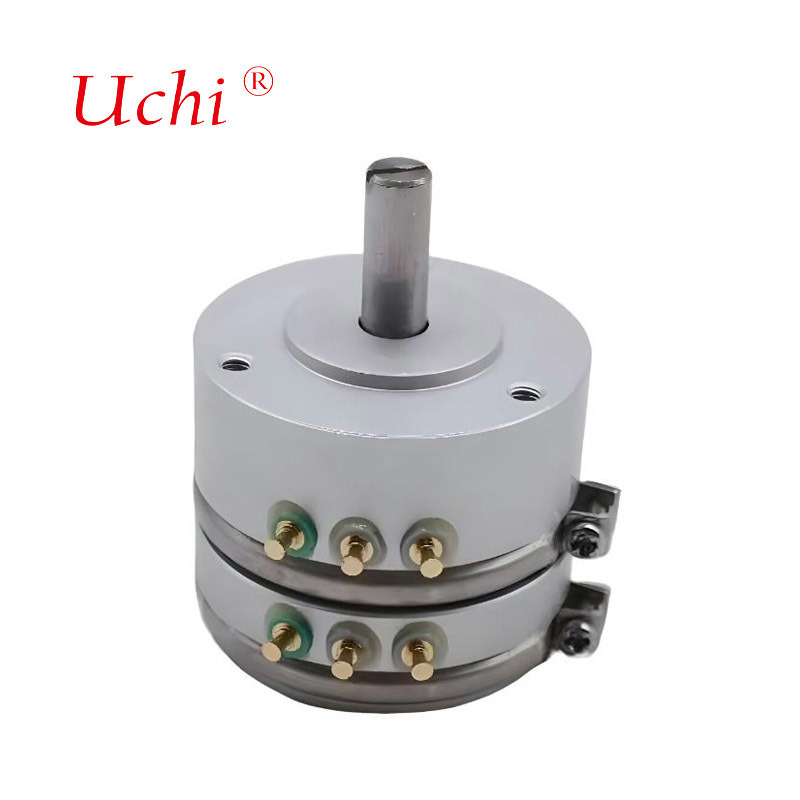

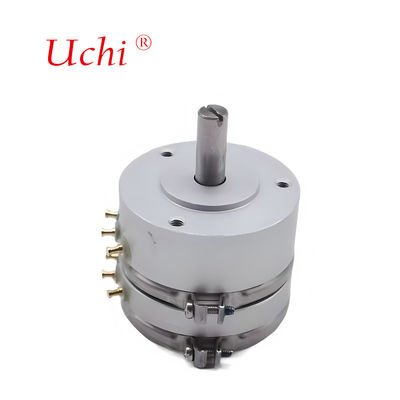

2WDD35D-4 10k Linear Dual Potentiometer Resistance Rotary Potentiometer
The 2WDD35D4 series products feature a hard aluminum alloy shell with conductive plastic resistance material, precision molded and laser-trimmed for optimal performance. Built with precious metal brush surge devices and stainless steel high-speed bearings, these potentiometers deliver long mechanical life, high resolution, smooth rotation, and low dynamic noise.
Product Features
- Hard anti-rust aluminum shell construction
- Molded integrated conductive plastic matrix
- Stainless steel shaft with high-speed bearings
- Precious metal brushes and current collector components
- High linear accuracy and long mechanical life
- Excellent resolution with low dynamic noise
Specification Parameters
| MAIN SPECIFICATION | |
|---|---|
| Total Resistance | 1K, 2K, 3K, 5K (Ω) |
| Resistance tolerance | ±15% |
| Independent Linearity | 0.1%, 0.2%, 0.3%, 0.5%, 1.0% |
| Output Smoothness | ≤±0.10% |
| Dielectric Strength | 1 minute at 1000V(AC.RMS) |
| Power Rate | 2W (@70°C) |
| Electrical Travel | 345°±2° |
| Resist. Temperature Coefficient Of Wire | ≤ ±400 P.P.M/°C |
| Insulation Resistance | ≥1000MΩ at 500V.D.C |
| MECHANICAL | |
| Mechanical Travel | 360°(Endless) |
| Starting Torque (MAX.) | 10x10-4N.M |
| Bearing | 2 Pairs Ball Bearing |
| Shaft | Stainless Steel |
| Housing Case | Aluminum alloy |
| Durable Performance | |
| Sliding life | Approx. 50,000,000(Shaft Revolutions) |
| Operating Temperature | -55°C~ +125°C |
| Vibration | 15G 2000Hz |
| Shock | 50G 11ms |
Product Size
Application Areas
Network communication equipment
Instrument equipment
Industrial machinery
Medical equipment
Injection molding machines
Crane torque control
Valves
Pedal testing
Robotic arms
Pan tilt control
Paper making machinery
Textile machinery
