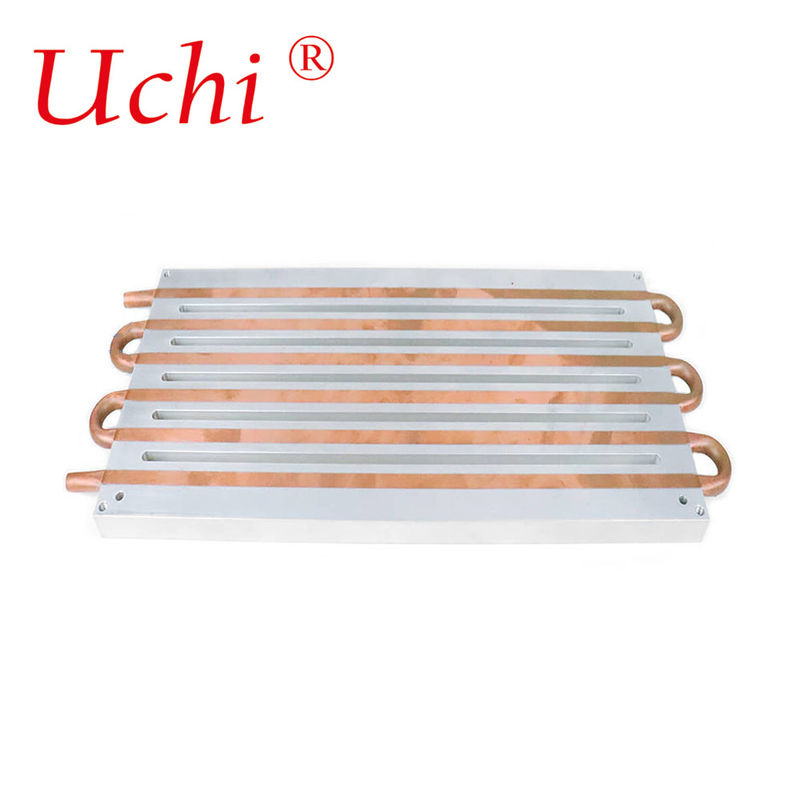

Precision Machined Cold Plate Water Cooled Heat Sink for Power Amplifier
Productdetails:
| Plaats van herkomst: | 40L |
| Merknaam: | Uchi |
| Certificering: | SMC |
| Modelnummer: | Warmteafvoer |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 100 stuks |
|---|---|
| Prijs: | 1300-1500 dollars |
| Levertijd: | Niet beperkt |
| Betalingscondities: | 1500 tpm |
| Levering vermogen: | 756G |
|
Gedetailleerde informatie |
|||
| materiaal: | Koper en aluminium | Productdimensie: | Het hele seizoen |
|---|---|---|---|
| Productgewicht: | 3,4 kg | functie: | Nieuwe technologie en krachtige koeling |
| Oppervlaktebehandeling: | Oliereiniging en anti-oxidatie | Warmtegeleidend vermogen: | 450 W |
| Producttechnologie: | Lassen en pijpen buigen | Type: | Aluminium profiel |
| Thermische geleidbaarheid: | ≥ 180 W/m·K | Textuur van materiaal: | 6061 |
| Buisafmetingen: | K-1/4”, K-3/8”, K-1/2” | Corrosiebestendigheid: | Hoog, door beplating of anodiseren |
| Dikte: | 0,30 mm - Aangepast | Montagemogelijkheden: | Schroefgaten of zelfklevende pads |
| Vochtigheid: | 5%~90% | Gewicht: | Afhankelijk van grootte en materiaal |
| Behandeling: | passivatieWarmtegeleidend | sollicitatie: | RGB-laserlichtbron |
| Productgewicht: | 1.198 kg | Lichaamsmateriaal: | Aluminium |
| Stroominterface: | 3-pins | Afmetingen: | Aanpasbaar (bijv. 100 mm x 100 mm x 10 mm) |
| Warmtegeleidend vermogen: | 275W | Productnaam: | Vloeibare koelplaat |
| Extra proces: | CNC-bewerking | Materialen: | koper + aluminiumlegering |
| Werkdruk: | Minimaal 1 bar | Koelmethode: | Vloeistofkoeling via interne kanalen |
| Oppervlakteruwheid: | 1,2 um | Proces: | gesoldeerde afgeschaafde vin |
| ventilator leven: | 50000 uur | Tolerantie: | 0,05 mm |
| Markeren: | precision machined cold plate heat sink,water cooled heat sink for power amplifier,liquid cooling plate with warranty |
||
Productomschrijving
Precision Machined Cold Plate Water Cooled Heat Sink for Power Amplifier
Material: AL 6061Size:260 * 125 * 18mWeight: 1.85kgTechnology: CNC machinedFeature: Good cooling capability and No leakage defaultSurface treatment: oil cleared,cleaned and passivationHeat conducting power: 860WYou can rest assured to buy Precision Machined Cold Plate Water Cooled Heat Sink for Power Amplifier from our factory and we will offer you the best after-sale service and timely delivery.
Product parameters of Precision machined cold plate water cooled heat sink for power amplifier
Material: AL 6061
Size:260 * 125 * 18m
Weight: 1.85kg
Technology: CNC machined
Feature: Good cooling capability and No leakage default
Surface treatment: oil cleared,cleaned and passivation
Heat conducting power: 860W
Product advantage of Precision machined cold plate water cooled heat sink for power amplifier
If you want us to make zipper fin and pipes pressing product, we can definetely make it as we have 10 stamping machines for high efficiency zipper fin production,and pipes can also be pressing on our own, no need to worry about the speed, we are always stuggle for it, to make faster and keep quality at the same time, increase best value between customers and our company.
Precision Machined Cold Plate
Water Cooled Heat Sink for Power Amplifier
1. Basic Introduction
This is a high‑precision CNC machined liquid cooling cold plate
designed specifically for power amplifiers (RF / microwave / high‑power linear amp).
It uses water or water‑glycol as coolant to take away heat quickly,
far more efficient than air cooling for high heat flux.
2. Structure & Manufacturing
- Material: Aluminum AL6061 / AL5052 / Copper
- Process:
- CNC mill internal cooling channels
- Cover plate welded / brazed / sealed
- Pressure testing, leak testing
- Channels: serpentine, spiral, multi‑pass, or optimized for amplifier layout
3. Key Features for Power Amplifiers
- High heat dissipation: suitable for 100W–several kW amplifiers
- Uniform temperature: keeps RF performance stable
- Low thermal resistance: direct machining → no interface gap
- Compact & flat: easy to mount with PA modules
- Leak‑proof design: pressure tested up to 6–10 bar
- Corrosion resistance: can use deionized water or coolant
4. Why Use It for Power Amplifiers?
Power amplifiers (especially RF & high‑power) are very sensitive to:
- Temperature drift
- Thermal expansion
- Heat concentration
A precision machined water cold plate:
- Stabilizes gain & output power
- Extends amplifier lifetime
- Allows higher power density in smaller space
- Eliminates fan noise & dust issues
5. Typical Applications
- RF power amplifiers
- Microwave transmitters
- Broadcast power amplifiers
- Industrial high‑power amplifiers
- Military & communication amplifier modules
6. Compared to Other Coolers
- Better than air cooling: higher heat load, quieter
- Better than extruded cold plates: complex channels, higher performance
- Better than skiving heatsink: for extreme high power
