The 148P Dust And Water Resistant Potentiometer Can Be Equipped With CC Stepping And Has A Protection Class Of P63
Productdetails:
| Plaats van herkomst: | Dongguan, Guangdong, China |
| Merknaam: | Uchi |
| Certificering: | SMC |
| Modelnummer: | 148P |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 100 -stcs |
|---|---|
| Prijs: | Onderhandelbaar |
| Betalingscondities: | T/T, PayPal, Western Union, MoneyGram |
| Levering vermogen: | 50000000 pcs per maand |
|
Gedetailleerde informatie |
|||
| Algemeen weerstandsbereik: | 50Ω - 2MΩ (fout ±20%) | Vermogen: | B Taps 0,5 W, overige 0,25 W |
|---|---|---|---|
| Overblijvende weerstand: | Klem 1-2/2-3 ≤20Ω MAX | Maximale bedrijfsspanning: | Lineaire conus BAC 500V, andere conus AC 250V |
| Geluid van schuifregelaar (zie JIS): | ≤47mV MAX | Isolatieweerstand: | ≥100MΩ MIN bij DC 500 volt |
| Bestand tegen spanning (klemmenkast): | 500V, AC (één minuut) | Stroom: | 0.05W |
| Totale rotatiehoek: | 300°±10° | Effectieve elektrische reizen: | 230°±3° |
| Hoek wisselen: | 50°±10° | Waterdichte graad: | IP63 |
| Markeren: | dust water resistant potentiometer,CC stepping potentiometer with P63,precision potentiometer with P63 protection |
||
Productomschrijving

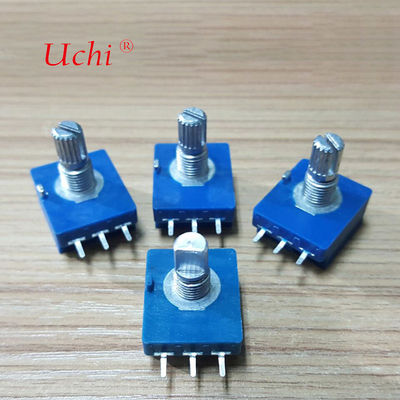

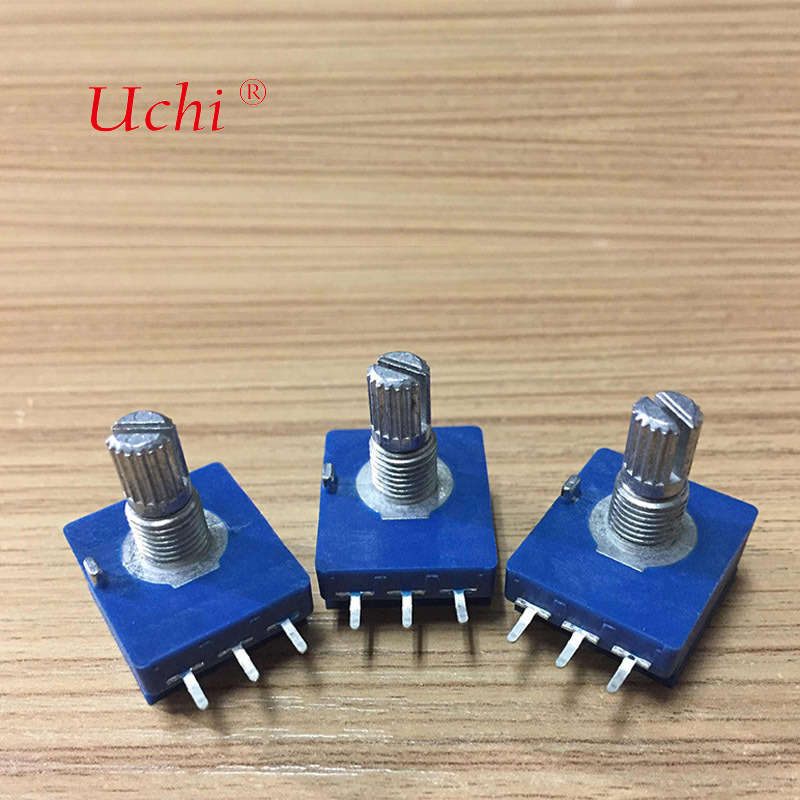

148P Dust and Water Resistant Potentiometer with CC Stepping (IP63 Protection)
The 148P dust and water resistant potentiometer features CC stepping capability and meets IP63 protection class standards for reliable performance in demanding environments.
Electrical Characteristics
- Overall resistance range: 50Ω - 2MΩ (Error ±20%)
- Power rating: B Taper 0.5W, Others 0.25W
- Residual resistance: Terminal 1-2/2-3 ≤20Ω MAX
- Max operation voltage: Linear taper BAC 500V, other tapers AC 250V
- Slider noise (Refer to JIS): ≤47mV MAX
- Insulation resistance: ≥100MΩ MIN at D.C 500 volts
- Withstanding voltage (Terminal-case): 500V, AC (one minute)
Taper Specifications
| Taper | Test point position | V1-2/V1-3 (%) | V2-3/V1-3 (%) |
|---|---|---|---|
| A | 180° | 10-30% | |
| B | 150° | 40-60% | |
| C | *180° | 10-30% | |
| D | 150° | 2-15% | |
| W | 90±5° | 5-15% | |
| 150° | 40-60% | ||
| 210±5° | 85-95% |
*With respect to terminal 3
Mechanical Characteristics
- Overall rotational angle: 300°±10°
- Effective electrical travel: 230°±3°
- Switch angle: 50°±10°
- Waterproof grade: IP63
- Operation torque: 100gf.cm-200gf.cm (rotational speed 60°/1 sec)
Durability
- Rotational life: More than 100,000 cycles
Additional Specifications
- All items meet or exceed JIS C6443 standards
- Operating temperature: -10℃ to +60℃
- Storage temperature: -30℃ to +70℃
