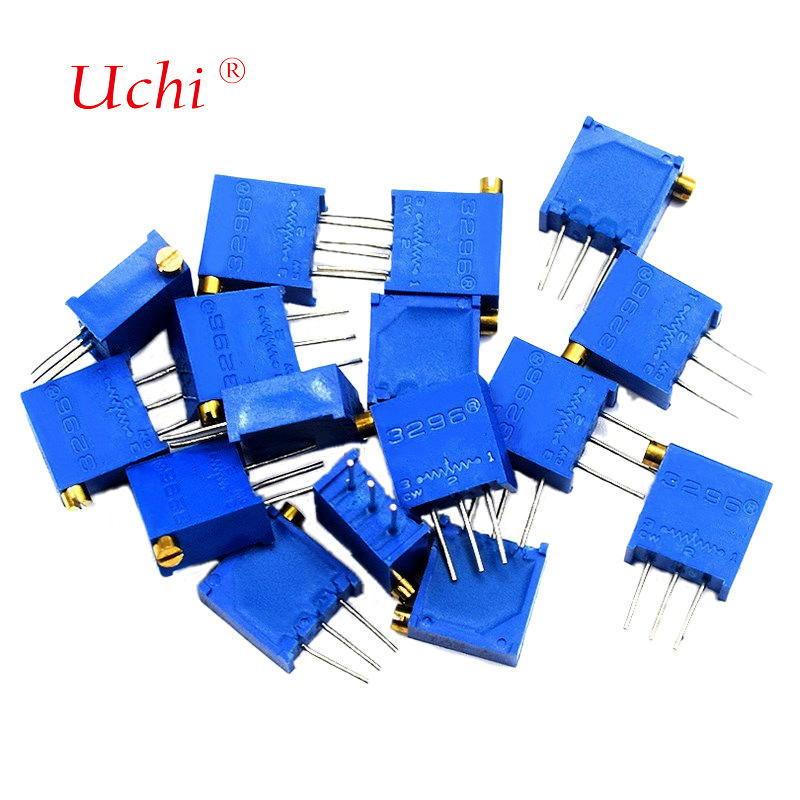

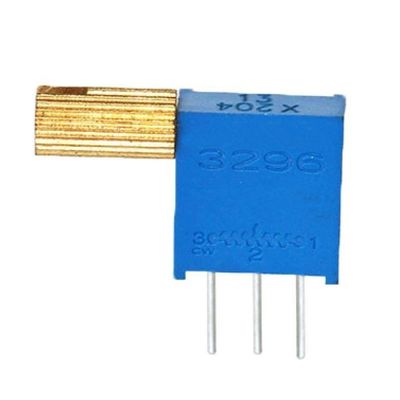

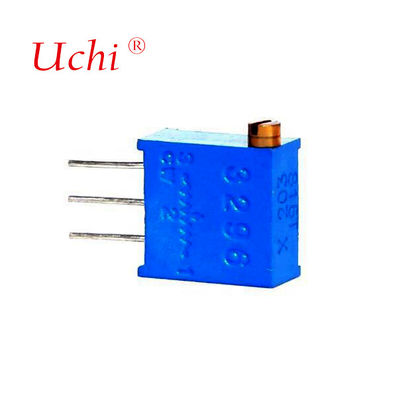

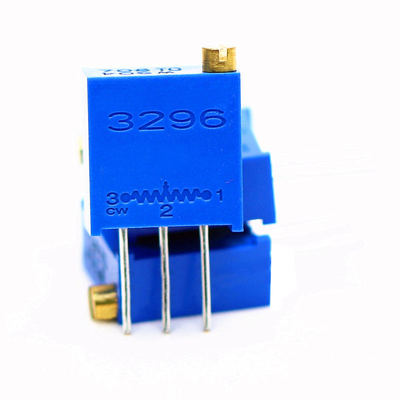

3296X 8mm Copper Long Knob 10k Trimmer Potentiometer Precision potentiometer
Productdetails:
| Plaats van herkomst: | Dongguan, Guangdong, China |
| Merknaam: | Uchi |
| Certificering: | SMC |
| Modelnummer: | 3296X |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 100 -stcs |
|---|---|
| Prijs: | Onderhandelbaar |
| Betalingscondities: | T/T, PayPal, Western Union, MoneyGram |
| Levering vermogen: | 50000000 pcs per maand |
|
Gedetailleerde informatie |
|||
| Weerstand: | 10Ω ~ 5mΩ | Specificatie: | 3296W\3296Z\3296Y\3296X\3296P |
|---|---|---|---|
| Functies: | Meerdere keren draaien | Eindweerstand: | ≤ ± 1% R of 2Ω |
| Isolatieweerstand: | ≥ 1GΩ (100V wisselstroom) | Temperatuurbereik: | -55°C~+125°C |
| Weerstandstolerantie: | ± 10% | Grootte / dimensie: | 10*9,6 mm |
| Nominale kracht: | 0.5W (maximaal 300V) | TCR: | ±250*10-6/°C |
| Markeren: | 8mm copper trimmer potentiometer,10k precision potentiometer with knob,3296X long knob potentiometer |
||
Productomschrijving
The 3296X is a high-precision multi-turn potentiometer with 5% or 10% adjustment accuracy. Featuring a resistance range of 10Ω to 5MΩ and total mechanical stroke of 28±2 turns, it's among the most widely used multi-turn potentiometers in industrial applications.
- High accuracy and reliability for demanding applications
- Extended service life with durable construction
- High resolution enables precise adjustments
- Ideal for signal gain and linearity adjustment
- Available in multiple models (3296W, 3296X, 3296P, 3296Y, 3296Z)
| Range of nominal resistance | 10Ω~5MΩ |
| Resistance tolerance | ±10% |
| Terminal resistance | ≤±1%R or 2Ω |
| Contact resistance variation (CRV) | ≤±1%R or 3Ω |
| Insulation resistance | ≥ 1GΩ (100V AC) |
| Withstand voltage | 640V (DC or AC peak value) |
| Effective electrical travel | ≥70% of mechanical travel |
| Rated power | 0.5W (300V max) |
| Temperature range | -55°C~+125°C |
| TCR | ±250×10-6/°C |
| Collision (390m/S2, 4000 times) | ΔR≤±1%R |
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS |
| Total mechanical travel | 28±2 lap |
| Starting torque | ≤25mN.m |
Standard packaging: 50 pcs/tube (3296W, 3296Y) or 40 pcs/tube (3296X, 3296Z, 3296P)
This precision potentiometer is widely used in:
- Industrial control systems
- Communication equipment
- Precision instruments
- Automotive electronics
- LCD panels
- Switching power supplies
We are a factory with extensive production experience, specializing in high-quality electronic components. Our facility features:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control
Our products meet international standards and we offer comprehensive after-sales support.
We offer reliable global shipping options including:
- Express Mail Service
- DHL Express
- UPS
- FedEx
We are a factory offering direct pricing with professional technical support.
Samples are available upon request after order placement.
We accept OEM/ODM orders with flexible requirements.
Delivery varies by quantity and model, with urgent requests accommodated when possible.
We provide comprehensive 24-hour support for all products.
